Cyberspace is a name for this global information system consisting of many familiar pieces — like websites, distributed video games, email — and many less familiar pieces as well, that work behind the scenes. Recall that we used the Department of Defense Joint Publication 3-12 on Joint Cyberspace Operations (JP 3-12) for defining cyberspace as

"a global domain within the information environment consisting of the interdependent networks of information technology infrastructures and resident data, including the Internet, telecommunications networks, computer systems, and embedded processors and controllers."

The fundamental aspect of all of these interconnected systems process, store, and access digital data. As electric current passes through the system bus and between hardware components, its signal and timing serve as the foundation of binary representation as 1's and 0's. Depending on your major, courses like Electrical Engineering or Computer Engineering will get deep into electronic signaling and how the amount of voltage is controlled and processed to support computer architectures. Fortunately, we will only be discussing basic mathematical principles of what those signals represent and how computers process data at a conceptual level.

Numeral Systems

The most common numeral system on the planet is the base 10 (N₁₀) system, where each value increments by one and each additional number represents 10ⁿ. Two Thousand Forty Eight is represented as (2 * (10³)) + (0 * (10²)) + (4 * (10¹)) + (8 * (10⁰)). Notice that the least significant (e.g., smallest) value is always on the right. That rule will continue to be applied to all of the numeric systems used in this course.

Another great example of a base 10 system is roman numerals, where I represent 1, V=5 or ½(10¹), X=10, L=50, D=500, M=1000, and so forth. We're used to working with base 10, but this class will introduce you to two of the most common numeric systems used across computing, base 2 and base 16.

Binary Systems

Binary values represent two states, 1 and 0, on and off. Each value represents a binary digit or bit (b), which is a combination of the two words. Using the base 2 (N₂) system, each position increments exponentially, as is the case with base 10 systems, but requires more positions. In converting the previous decimal value of Two Thousand Forty Eight to binary, it is written as 100000000000. Let's break it down:

	← MSB											LSB →
	1	0	0	0	0	0	0	0	0	0	0	0
N2	211	210	29	28	27	26	25	24	23	22	21	20
N10	2048	1024	512	256	128	64	32	16	8	4	2	1

If you only add the N₁₀ value that is on, represented by the 1 in the top row, the resulting value is 2048.

Let's compare the decimal number One Hundred Twenty Three using base 10 and base 2 numeric systems:

	1	2	3
	102	101	100
N10	100	10	1
SUM	100 +	20 +	3 =	123

	← MSB							LSB →
	0	1	1	1	1	0	1	1
N2	27	26	25	24	23	22	21	20
N10	128	64	32	16	8	4	2	1
SUM	0 +	64 +	32 +	16 +	8 +	0 +	2 +	1 =	123

When calculating base 2 binary values, it's required to be converted to base 10 and summated. The Most Significant Bit (MSB) is on the left and the Least Significant Bit (LSB) is on the right, indicated by the highest value and lowest values, respectively. The MSB positions to the left do not change the value of a number when zeroes are placed ahead, regardless of the number of zeroes placed. This applies to all numeric systems used in computing. In other words, the N₁₀ value of 000,123 is the same as One Hundred Twenty Three. This also applies to binary values as 111 binary is equivalent to 7 decimal and so is 00111 binary.

The N₂ value of 01111011, a string of eight-bit values, is called a byte (B). This is organized not only for the ability for humans to process data but the amount of chunks hardware components can process at a time. Realize that processing power consumes instruction sets using virtual memory sizes. The Apollo Lunar mission was equipped with a 16-bit processor that was part of the Apollo Guidance Computer (AGC) installed in the Apollo command module (CM) and Apollo Lunar Module (LM). Almost all computers and mobile devices manufactured today come with 64-bit processors as well as the 64-bit OSs that can support those instruction sets. That's why 32-bit OSs are backwards compatible, in addition to 32-bit software applications that can run on 64-bit processors.

Recall from algebra that multiplication is a form of addition and division is a form of subtraction. The latter applies when converting base 10 to base 2 but we'll elaborate on the two different techniques available for use. The first technique in binary conversion is subtracting the decimal value from the binary value, starting with the MSB and working down to zero.

Solve for the binary value of decimal 123 using the subtraction method:

1. The highest value 123 does not exceed in base 2 is 2⁶
2. Subtract 2⁶, or 64, from 123 and the remainder is 59
3. Set the binary value of 2⁶ to 1
4. Repeat the process through to the LSB: Does 32 go into 59? Yes.
5. 59-32 = 27, set 2⁵ to 1
6. 16 goes into 27; 27-16 = 11, set 2⁴ to 1
7. 8 goes into 11; 11-8 = 3, set 2³ to 1
8. 4 does not go into 3, therefore 2² to 0
9. 2 goes into 3; 3-2 = 1, set 2¹ to 1
10. Finally, 1 goes into 1; 1-1 = 0, set 2⁰ to 1

	← MSB							LSB →
N2	27	26	25	24	23	22	21	20
N10	128	64	32	16	8	4	2	1
Solve	123	123-64	59-32	27-16	11-8	3	3-2	1-1
Remainder	123	59	27	11	3	3	1	0
Binary	0	1	1	1	1	0	1	1

Solve for the binary value of decimal 123 using the division method:

1. Base 2 (N₂) remainders (R) will only be 1 or 0 and continue to divide by 2 (divisor) until the quotient is 0. Because we are starting with the dividend as the largest value, the R will begin on the right with the LSB.
2. 123 ÷ 2 = 61 R1
3. 61 ÷ 2 = 30 R1
4. 30 ÷ 2 = 15 R0
5. 15 ÷ 2 = 7 R1
6. 7 ÷ 2 = 3 R1
7. 3 ÷ 2 = 1 R1
8. 1 ÷ 2 = 0 R1
9. Quotient is now set to 0 and copy R values as binary, with MSB starting from the bottom = 1111011

	← MSB							LSB →
Dividend	0	1	3	7	15	30	61	123
Solve	0	1÷2	3÷2	7÷2	15÷2	30÷2	61÷2	123÷2
Quotient	0	0	1	3	7	15	30	61
Remainder	0	1	1	1	1	0	1	1

Check your work:

	← MSB							LSB →
Binary	0	1	1	1	1	0	1	1
N2	27	26	25	24	23	22	21	20
N10	128	64	32	16	8	4	2	1
SUM	0 +	64 +	32 +	16 +	8 +	0 +	2 +	1 =	123

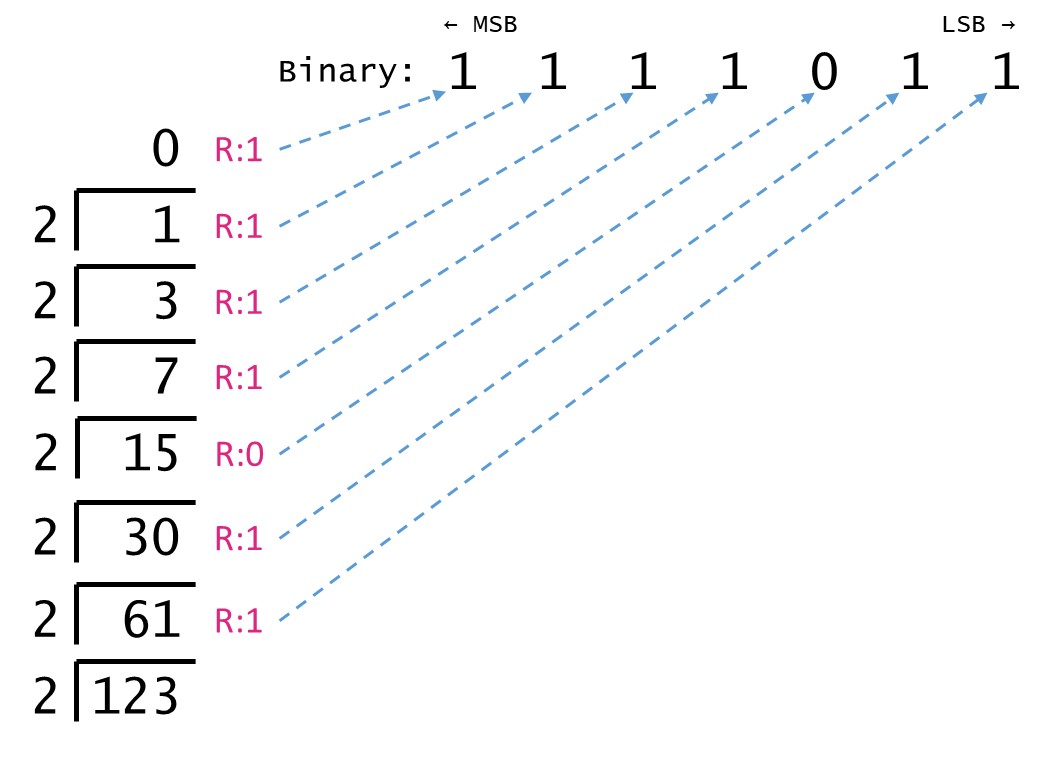

For those that prefer the long division method, the process is the same but can be visually organized in a manner that's more intuitive. Working from the bottom-up, work through the R-values and be aware that the MSB begins at the top once your dividend reaches 0. Additionally, there are only seven binary values in the example problem. If you want to have a full byte-value, add as many zeros as necessary towards the MSB until you fill the byte.

Note: Calculators will not be permitted throughout this course. It is critical for you to understand these concepts and conduct all mathematical conversions manually.

Knowledge Check: Convert the decimal value of Two Hundred Forty Six to binary.
Check Answer

Scaling and Prefixes

A computer is typically capable of storing and processing an immense amount of data. In order to scale, just like we do with base 10 values, prefixes are used to represent large numbers. Below are charts representing both base 10 and base 2 values used in computing. When referring to storage, data is typically referred to in bytes (B), where 20 Gigabytes (GB) is equivalent to 20,000,000,000 bytes; however, note that the International Electrotechnical Commission (IEC) standardized prefix for base 2 would be identified as 20 Gibibytes (GiB) with an accurate decimal value of 21,474,836,480 bytes. That's a difference of 1,474,836,480 bytes when comparing 20GB to 20GiB.

Prefix	Symbol	Base 10	Number of Bytes (Decimal)
kilo	K	103	1,000
mega	M	106	1,000,000
giga	G	109	1,000,000,000
tera	T	1012	1,000,000,000,000
peta	P	1015	1,000,000,000,000,000
exa	E	1018	1,000,000,000,000,000,000
zetta	Z	1021	1,000,000,000,000,000,000,000

Prefix	Symbol	Base 2	Number of Bytes (Decimal)
kibi	Ki	210	1,024
mebi	Mi	220	1,048,576
gibi	Gi	230	1,073,741,824
tebi	Ti	240	1,099,511,627,776
pebi	Pi	250	1,125,899,906,842,624
exbi	Ei	260	1,152,921,504,606,846,976
zebi	Zi	270	1,180,591,620,717,411,303,424

Knowledge Check: How long would it take to download a 4 MiB image with a 1.5 Mbps connection?
Check Answer

Hexadecimal Systems

Bytes are a foundational principle in computing but it can be cumbersome to write out all eight bits of a byte. To simplify the amount of data that can be viewable by humans, each byte is displayed as two hexadecimal digits, or nibbles (yes, it's a play on words from byte). Hexadecimal is base 16 (N₁₆) number system. The important point is that it gives us a concise representation for bytes since each hex digit represents a 4-bit pattern. Two hex-digits represent an 8-bit pattern, or one byte. But what happens beyond decimal values of 0-9? Just like license plates, letters allow combinations of numeric representations beyond ten digits with 10=a, 11=b, 12=c, and so on.

The following table gives the mapping between the hex, 4-bit nibbles, and decimal values:

hex digit	0	1	2	3	4	5	6	7	8	9	a	b	c	d	e	f
4-bit nibble	0000	0001	0010	0011	0100	0101	0110	0111	1000	1001	1010	1011	1100	1101	1110	1111
decimal	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15

Solve for the hex value of decimal 123:

1. If you don't know the binary value of decimal 123 then do the conversion from decimal to binary but this should have been previously completed from the readings above.
2. Split the byte values to nibbles (4-bits) and convert decimal values to hexadecimal.

Bin	0	1	1	1	:	1	0	1	1
N2	23	22	21	20	:	23	22	21	20
SUM	0 +	4 +	2 +	1	:	8 +	0 +	2 +	1

Dec	7	:	11
Hex	7	:	B
N16	161		160

With many numeric systems and conversions between different base numbers, how can someone tell what-is-what if there's no unit of measure indicated? There should always be a unit of measure indicated, to include any answers provided. It doesn't help if a question is written in a way that is not effective for someone to understand, such as "convert 110 to hex." Is 110 decimal or binary, assuming that 110 isn't already hex? But how would someone tell between 110 bin, dec, and hex? Two methods to indicate hex values have the symbols 0x or # preceding it. 0x110 and #FF0000 are both hex values, the first representing a decimal value of 272 and the second representing the color red in a color palette.

When converting N₂ to N₁₆, always begin with nibbles from the LSB. This is because leading zeros that would typically complete a full byte may not exist. Earlier discussions stated that 111 binary is equivalent to 7 decimal and so was 00111 binary. Let's use a larger value to convert for hex, such as 10100 whose decimal value is 20.

Based on the earlier statement in regards to leading zeros,
  if
    20 (dec) = 020 (dec)
  and
    20 (dec) = 10100 (bin),
  then
    10100 = 010100 = 00010100 (leading zeros).

Converting 10100 to hex = 0x14 when starting with LSB.

What happens if 010100 is converted to hex from the MSB? Then 010100 or 0101 0000 (trailing zeros) would be 0x50 but 0x50 ≠ 20 (dec)! 0x50 = 80 (dec) = 1010000 (bin). Never start converting hex or nibbles from the MSB!

When separating bin values into nibbles, it becomes much easier to read.

In restating the previous conversions with nibble separation,
  if
    20 (dec) = 020 (dec)
  and
    20 (dec) = 1 0100 (bin),
  then
    1 0100 = 01 0100 = 0001 0100.

Similarly with dec values, we separate every N₁₀ exponent multiple of 3 with commas to make it easier to read. Now you can see that you must begin with the LSB to ensure that the proper nibble values are aligned!

Knowledge Check: Convert the decimal value of Two Hundred Forty Six to hex.
Check Answer



Knowledge Check: Convert the byte-string 101001101011001001100010011000100110000 to hex and then to ASCII.
Check Answer

---

---
