A common case of when you'll want to create a quick program is if you receive a bunch of data in a structured format, but the data is far too big to manually understand. Spreadsheets and Excel are usually the layman's default answer, but even Excel is limited to one analysis at a time.
In today's lab, you will write a computer program that processes data about food production in middle-to-low income countries. Imagine yourself as an international long-term threat expert within the Navy. You've been given 7MB of data, way too much to go through by hand. Thankfully you took this class! You will write a program to create graphs of country food production trends for quick analysis.

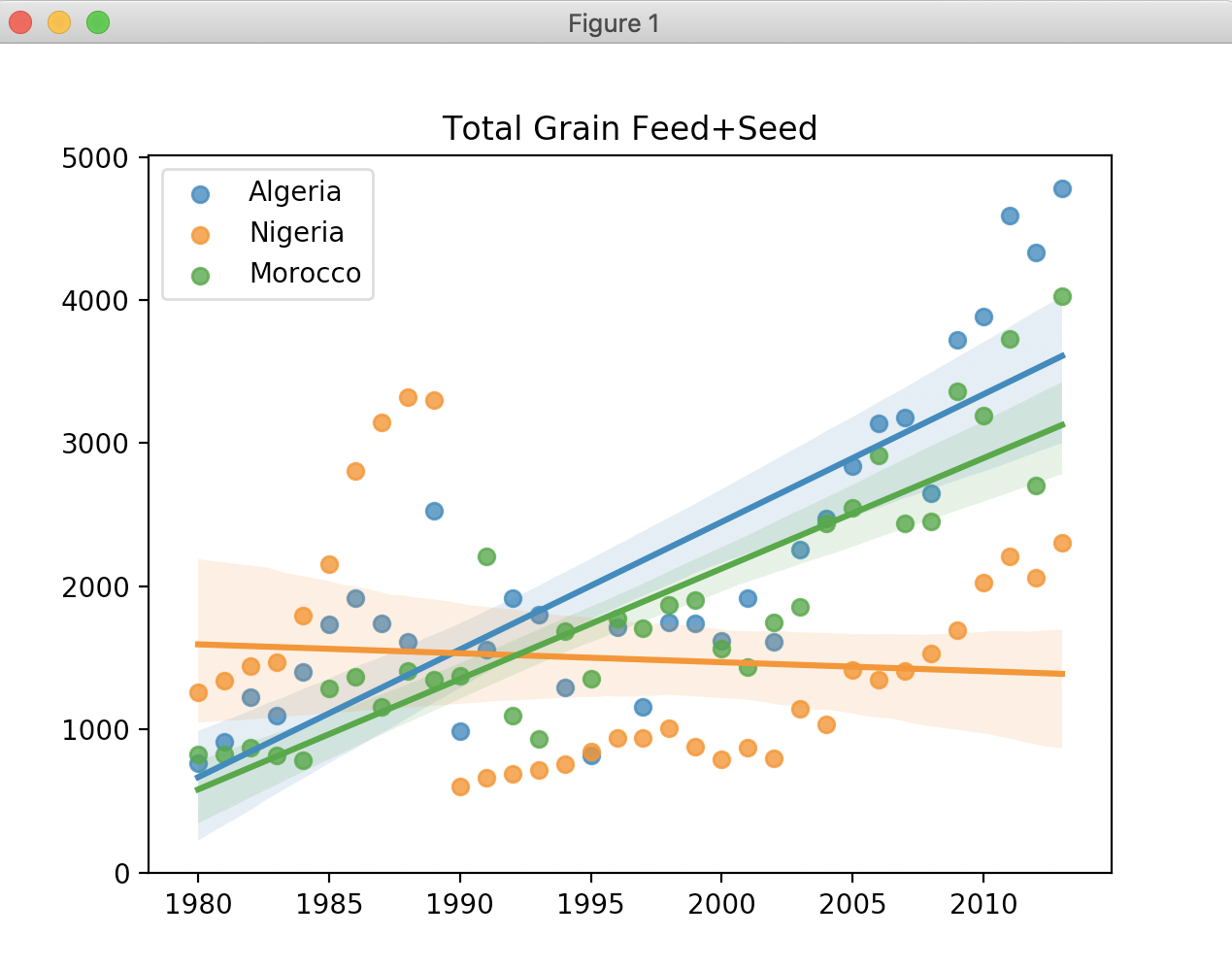

7MB of data, and look at that graph on the right. You should already see something interesting pop off the graph (hint: Nigeria in 1990). Computer programming is great!
Visit the US Dept of Agriculture's page on international food security. Download the CSV file (scroll down, CSV File). CSV stands for comma-separated values. This is a very common file format that all modern spreadsheet tools can generate.
For graph visualization, we will use Python's very popular Matplotlib library. Matplotlib's graphs are a little boring, though, so we'll use the complementary Seaborn library for nicer looking Matplotlib graphs. Thus, you have two libraries to install:
sudo apt install python3-matplotlib
pip3 install seabornWe haven't talked about reading text data from files, but it's pretty straightforward. In fact, here are 2 lines of code that opens a file and reads in every line to a list:
with open('data.txt', errors='replace') as f:
lines = f.readlines()Do not skip understanding this. This code opens a text file named "data.txt", and then it reads the lines into a List. We know all about lists, right? The variable lines is a List of strings where each string is one line of the file.
Create a file called lines.py. You are ready to take your first step. Write a program that asks the user for a filename, and then prints out the 10th line in the gfa25.csv file you downloaded above. You should match this output exactly:
Filename: gfa25.csv
Algeria,Total Grains/Cereals,Import Quantity,1000 MT,1980,3413.81
Let's continue on. Instead of printing one line, let's loop over ALL the lines, but printing only the ones we care about. Change your program to print all lines that contain "Somalia" and "Feed + Seed" (reminder: use the in operator). Your output should match:
Filename: gfa25.csv
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,1980,16.986
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,1980,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,1981,17.83
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,1981,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,1982,13.636
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,1982,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,1983,17.886
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,1983,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,1984,16.465
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,1984,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,1985,15.597
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,1985,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,1986,18.693
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,1986,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,1987,20.538
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,1987,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,1988,19.774
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,1988,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,1989,17.85
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,1989,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,1990,40
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,1990,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,1991,10
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,1991,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,1992,20
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,1992,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,1993,5
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,1993,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,1994,15
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,1994,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,1995,15
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,1995,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,1996,10
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,1996,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,1997,10
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,1997,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,1998,6
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,1998,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,1999,10
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,1999,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,2000,15
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,2000,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,2001,13
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,2001,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,2002,19
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,2002,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,2003,14
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,2003,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,2004,13
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,2004,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,2005,8
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,2005,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,2006,14
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,2006,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,2007,8
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,2007,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,2008,14
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,2008,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,2009,17
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,2009,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,2010,17
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,2010,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,2011,15
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,2011,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,2012,12
Somalia,Root Crops (R&T),Feed + Seed,Grain Equiv. 1000 MT,2012,0
Somalia,Total Grains/Cereals,Feed + Seed,1000 MT,2013,17
The above includes Somalia's Feed/Seed production. You might notice BOTH root crops and total grains are interspersed. In every data processing task, it gets messy and you have to keep whittling it down until you get at the data you need. We want two things: the YEAR and the AMOUNT. We also just want it for the Total Grains (not root crops). Your task is to alter what you have and print just the year and amount for Total Grains!
How to get the year and amount? We've done this a couple times now with strings. We frequently use the str.split(' ') function to split a string on spaces into a list of individual strings. Change the space argument to be whatever is appropriate for this task. When done, you should print them out exactly like this:
1980 16.986 1981 17.83 1982 13.636 1983 17.886 1984 16.465 1985 15.597 1986 18.693 1987 20.538 1988 19.774 1989 17.85 1990 40 1991 10 1992 20 1993 5 1994 15 1995 15 1996 10 1997 10 1998 6 1999 10 2000 15 2001 13 2002 19 2003 14 2004 13 2005 8 2006 14 2007 8 2008 14 2009 17 2010 17 2011 15 2012 12 2013 17
Copy your lines.py to graph.py. You will now change your program to do the following:
I hope you see that your output from the previous plot is looking like an x-axis and a y-axis that can be plotted!
In order to generate a scatterplot, we will need two lists. The first list is the x-values, and the second list is the y-values. Continuing with our Somalia example from above, your task is to stop printing the year/quantity and instead create two separate lists, one for each. Then print the lists like so:
years [1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013] counts [16.986, 17.83, 13.636, 17.886, 16.465, 15.597, 18.693, 20.538, 19.774, 17.85, 40.0, 10.0, 20.0, 5.0, 15.0, 15.0, 10.0, 10.0, 6.0, 10.0, 15.0, 13.0, 19.0, 14.0, 13.0, 8.0, 14.0, 8.0, 14.0, 17.0, 17.0, 15.0, 12.0, 17.0]
Your job: write code to create these two lists from the CSV lines you printed in Step 1! Once you have the two lists, we just use a handy-dandy graphing library!
Seaborn is a cool graphing library that was built around the popular Matplotlib library which is very powerful, but less cool looking. There are lots of graphing options available in Python. Ok how do we use it? Here is an example:
import matplotlib.pyplot as plt
import seaborn as sns
x_list = [ 1, 2, 4, 5, 6 ]
y_list = [ 3, 4, 5, 6, 7 ]
# "Regression Plot" to plot your data points, and then fit a line to it.
sns.regplot(x_list, y_list, label="Legend Name")
# Final code to generate the details of the plot
plt.legend() # shows the legend!
plt.title('Give It a Title')
plt.show() # finally pops it up
Did you try it? Create a test.py and paste this in. Run it. Cool right?
Ok we're done showing you stuff. This test.py program shows how to graph some points (two lists is all you need!). We showed you how to read in lines. You already pulled out what you needed from those lines. Now just put the two together. Process the lines to create two lists of x,y values, and then graph it.
Required: you will turn in graph.py which does the two steps:
Copy your graph.py to graphs.py. The last piece is to make this more useful as an interactive tool.
Allow the user to enter more than one country at once, separated by commas. You will graph all the countries they enter on the same graph. This is actually pretty easy with sns.regplot(x_list, y_list, label="Legend Name"). If you call regplot twice with different data, it will show them on the same graph. Call it N times in a row, and it will have N colored lines.
Your behavior should look like this:
Filename: gfa25.csv
Countries: Algeria,Nigeria,MoroccoThe generated graph should look exactly like the one at the very top of this page. It goes without saying that your program should work for any number of countries, including just one.
Finally, make it a loop so that the user can close the graph and then enter a new query without typing in the file again. Like so:
Filename: gfa25.csv
Countries: Algeria,Nigeria,Morocco
Countries: Sudan
Countries: Laos,Nigeria
Countries: quitThe user will hit the X on the graph to close it and get the next prompt.
Required: you will turn in graphs.py which behaves as specified above.
Change your program to allow the user to alter category and desired age range with commands:
Filename: gfa25.csv
Countries: Sudan,Zimbabwe
Countries: cat Root Crops
Countries: type Import
Countries: Sudan,Zimbabwe
Countries: quitThe first graph will be the same, but the second of Sudan/Zimbabwe should now show lines for Imports of Root Crops.
If you did that quickly, it means you used good coding practices with variables. Now make an "ALL" option that displays the line for all countries:
Filename: gfa25.csv
Countries: cat Root Crops
Countries: type Import
Countries: ALL
Countries: quitThat should show a crazy full graph. Which countries have actually been declining in imports? Try some other categories, what changes?
Did you learn something today? Hooray!
Make sure you have good comments in your code before submitting.
Visit the submit website and upload lines.py, graph.py, graphs.py file to Lab05 for grading.
