Executive Summary
You will be implementing a relatively complex old-school
arcade-style game, which we're calling "Escape!".
The game will run in the terminal and be based on ncurses, which
you are familiar with from our prior lab. In this game, you are a
player on a game board:
Honor:
The
course policy
and the instructions it references,
most pertinently
COMPSCIDEPTINST 1531.1C,
spell out
what kinds of assistance are permissible for programming
projects. The instructor can give explicit permission for
things that would otherwise not be allowed.
For this project, you have explicit permission
-
to get help from other current SI204 instructors as well
as your own and from current SI204 MGSP leaders (any
assistance must be documented though), and
- to use general purpose C++ resources online (though such
use must be documented).
Resources that might specifically address this project,
say looking through code of programs that implement a
maze-navigation game using
ncurses, are not allowed.
Put the instructions referenced in the course policy and the
explicit permissions above, and what you get is summarized as:
-
The only help you may receive on a project is from your
instructor or the other SI204 instructors and SI204 MGSP
leader, and that help must be clearly cited. In turn, you
cannot provide help to any SI204 students on this
project.
-
In no circumstance - project, homework or lab - may you copy
code and submit it as your own work. That is the definition
of plagiarism.
-
For projects, you may not look at other
people's project code nor may you show your own code to
others.
-
You can look at online resources for general purpose C++
programming, but not for help writing games with ncurses
or anything else that is specific to the functionality
required of your project.
Part 0: Download Required Files
p3files.tgz
All required files in one download. This contains everything below. To extract its files, run the following command:
tar -xvf p3files.tgz
The following are the individual files contained in the archive "p3files.tgz" above.
easycurses.h
easycurses.cpp
Your interface to drawing in the terminal.
Pos.cpp
Pos.h
These functions and structs
will make your life easier.
You must use both Pos.cpp/Pos.h, and you cannot modify them.
boardTiny
board2rm
boardCenter
boardMaze
rundebug
The program that handles debug output & opens a 2nd terminal for you.
gameScript.txt
Part 0.1: Review Material
Easycurses.h: Review Lab 10 for easycurses.h and how to use it.
Debugging: easycurses takes over your terminal, so you can't just cout
helpful debug messages anymore. Look at Parts 1b and 1c of Lab 10 for a reminder of how to do this with 2 terminals.
Important: be sure to check out
further information on
design suggestions!
Part 1: Read the board! [Up to 25pts]
Name your .cpp file containing main() part1.cpp
How to compile: g++ part1.cpp <other-files.cpp> Pos.cpp easycurses.cpp -l ncurses
This part is about reading in the board, and not much else.
Don't do it all at once, break this part into your own smaller steps.
A valid Part 1 solution:
Board files look something like this:
10 x 20 1
####################
# #
# Z ######## #
# # #
##### # #
# # # #
# X # # #
# ##### # Y #
# # #
####################
The first line gives number of rows x number of columns,
followed by the number of Z's you'll find on the board.
The X marks the goal position on the board. This is where the
player is trying to get to. The Y marks the player's starting
position.
Z
s are "spawn spots". These are
positions that moving, death-dealing objects spawn from.
There can be multiple spawn spots.
Note: Walls are always # characters, and walls always
surround the edges of the board.
-
Reads a
filename for a board from the user (before ncurses is initialized!);
it must print an error message and return if the file is not
found!
-
Reads the board file and stores the information in it,
then prints the board on the
screen using easycurses.
If the terminal window is too small, the program must exit
easycurses, print an appropriate error message, and exit the program.
Note 1:
Don't print
spawn spots or the player's start spot, but do print X for
the goal.
Note 2:
Spaces are important here. You'll have to use the special ifstream function get()
which returns char by char each time you call it: char ch = fin.get();
rather than fin >>
because you have to read in the
whitespace characters.
-
After the board is printed to the screen, use the following loop;
do {
usleep(150000); // pause (sleep) for .15 seconds
char c = inputChar();
if( c == 'y' )
break; // loop exits with a 'y'
} while(true);
... so that the board stays on the screen until the user
presses y on the keyboard.
After exiting the loop, the program must
exit easycurses by calling endCurses()
, and then print out
the row,col coords of the player start spot and the spawn
spots, just so we're sure we've got them right.
Note 3: You should make a struct to represent all
the info you read from the file, and make a separate function
to read in the file and give values to all the members of that
struct.
Note 4: You must split your program into .h and .cpp
files as we have discussed.
hit enter
press y
Note: Check out this
video of a running solution.
Important: be sure to check out
further information on
debugging with ncurses!
Part 2 Implement the player! [Up to 45pts]
Name your .cpp file containing main() part2.cpp
How to compile: g++ part2.cpp <other-files.cpp> Pos.cpp easycurses.cpp -l ncurses
If you like, you can use the arrow keys to move rather
than a,s,d,w. Here's how to do that:
-
When reading keyboard input, store the result of
calling
inputChar()
in an int, not a char:
int kb = inputChar();
- You can still check
for characters like "
kb == 'a'
", but you
can also compare kb
to the constants
KEY_LEFT
,
KEY_RIGHT
,
KEY_UP
,
KEY_DOWN
that ncurses defines.
So, for example,
int kb = inputChar();
// if a-key was pressed
if( kb == 'a' ) { }
// if left-arrow was pressed
if( kb == KEY_LEFT ) { }
A Part 2 solution adds on to the Part 1 solution by implementing
the player — i.e. the figure
in the game that the user controls. Here are the details:
-
The player (represented in the game by a "P") can either be
moving or stopped. It starts the game stopped, and at the
position marked on the input file by a "Y".
-
The r key stops a moving player. The a,s,d,w keys set the
player's direction to W, S, E, or N respectively and, if
the player is stopped, set it to moving.
A moving player moves one step forward per round in its current
direction.
-
The player must bounce off the walls. If the next step
moving forward would put the player inside a wall (a "#" on the
game board), the game turns the player 180 degrees, stepping in
that direction instead (unless there is a wall there as
well, in which case remain in the same position but maintain
your direction — the next random maneuver will hopefully
unstick the player).
Important: be sure to check out
further information on
on bouncing!
-
The game stops when the player comes within distance 1 or
less of the X.
-
If the game stops because you reach the goal, print out the
player's "score", which is 500 minus the number of
steps (i.e. times through the main loop) it took to get
to the goal.
Note: Check out this
video of a running solution.
Part 3: Implement the space ships [Up to 75pts]
Name your .cpp file containing main() part3.cpp
Part 3 adds on to Part 2 by implementing "space ships", which are
randomly moving figures (represented by *
's
in the game) that kill the player if they collide with them.
These ships bounce off walls, but simply pass through one another.
Here are the details:
-
At the start of the game, there are five overlapping ships
on each spawn spot, each with a randomly chosen direction.
-
Just as with the player, ships move one step per round in
their current direction, and they bounce off walls in the same
manner as the player. Colliding ships simply pass through
one another.
-
Every round there is a 1-in-10 chance that the ship will turn
before stepping (not counting turning because of walls). This
turn will be a 90deg left turn with probability 1/2, and
otherwise a 90deg right turn.
You're using our provided Pos.h and Pos.cpp code, right??
-
If a ship and a player collide, the
player dies (the game should then pause for two seconds,
then exit the program). Here's how to define "collision":
After each object has made its step for the round, we will say
that player P and ship S have collided if
P's current position and S's current position are the same, or
both P's current position is the same as S's previous position
and P's previous position is the same as S's current position.
This may seem a bit complicated, but we have to handle the
situation in which P and Q are in adjacent squares and heading
straight for one another. In this case, after one step they will
have crossed, swapping positions. So even though their previous
positions are different from one another and their current
positions are different from one another,
we still want to consider them to have collided.
Note:
Because of this rule, I strongly recommend that whatever struct
you use to represent moving objects actually has a data member that
stores the previous position.
Note:
I also strongly recommend that you implement a cheat —
for instance the i key could make you immortal (i.e. collisions don't kill you). That
makes life a whole lot easier when debugging along the way.
Note: Check out this video of a running solution.
Important: be sure to check out
further information on
on collisions and death!
Part 4: Implement the Hunters [Up to 85pts]
Name the .cpp file containing main() part4.cpp
Part 4 adds on to Part 3 by implementing "hunters" which are
game figures that kill the player on collision but which, unlike
ships, actually track down the player. Here are the details:
-
At the start of the game, there is one hunter
on each spawn spot, each with a randomly chosen direction.
- Hunters are represented on screen by K
- Hunters move (and kill) exactly like ships except that instead of
having a 1-in-10 chance each turn of turning randomly either left or right,
a hunter has a 1-in-2 chance each turn of reassessing its direction. When
it does so, it chooses a direction toward the Player. according to the following
rule:
1. let dc = (Player column position) - (Hunter column position)
2. let dr = (Player row position) - (Hunter row position)
3. if dc < 0 then let cdir = 3 // West
4. if dc >= 0 then let cdir = 1 // East
5. if dr < 0 then let rdir = 0 // North
6. if dr >= 0 then let rdir = 2 // South
7. With prob 1/2 set Hunter's direction to rdir, otherwise set Hunter's direction to cdir
Note: Check out this video of a running solution.
Part 4.5: Make your own board [Up to 90pts]
This isn't really programming, but you should do it anyway.
Make your own board file, call it boardYYXXXX.txt
,
where YYXXXX is your alpha code. Be creative, but make sure
your program still works with your board file as input!
Note: be sure to put walls on all edges!
Part 5: Make it a game [Up to 100pts]
Name the .cpp file containing main() part5.cpp
Part 5 builds on Part 4 to make this a real game: if you die three
times the game's over, you get "points" as you progress,
if you win one board you go on to the next, each
board getting more difficult but worth more points.
Looked at one way, Part 5 is a fairly major rewrite of Part 4.
Looked at another way, if you package your entire Part 4
solution up into a function, Part 5 is nothing more than
calling that function repeatedly. Here are the details:
-
The file gameScript.txt
contains lines like the following:
,-|number of ships spawned per spawn-spot
/
board2Rm.txt 5 1 points = 1000 ←|number of points for winning this board
------------ \
board file name `-|number of hunters spawned per spawn-spot
A player working through the game plays the board as
described by the first line of gameScript.txt
until either dying three times (on that board) or winning. If the player
wins, the game moves on to the board described by the
second line of gameScript.txt,
and so on and so forth. Nobody except Neo could possibly
finish the entire script, so we don't worry about it.
-
A valid Part 5 solution must read
the gameScript.txt
file completely at the very beginning of the program,
and store the relevant information in it in a linked list.
Yes, it has to be a linked list!
After it's in the linked list you can transfer it into an
array if you want, but you have to read it into a linked
list. Why? Because you don't know ahead of time how many
lines there will be in the file ... and also because I told
you so.
-
After a victory on a given board, your score is the points value
for that board plus 500 minus the number of rounds/steps it took you
to get to the goal.
-
After a victory, restart the game with the next board on the list.
Instead of a fixed value of five ships and one hunter per
spawn spot, use the values given in the line
from gameScript.txt.
-
After three deaths at any level, exit but print the total score first.

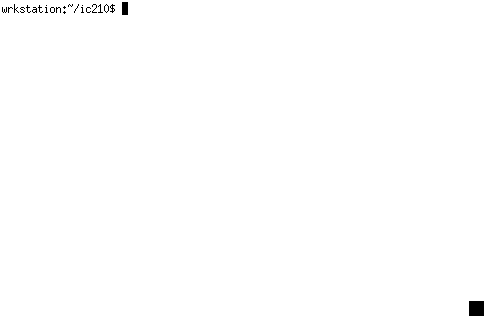

Note: Check out this video of a running solution.
Extra Credit [+15Pts]
- name the .cpp file containing main() partX.cpp
You may earn extra points by adding on interesting (or difficult
to implement) features to the basic game described in Parts 1-5.
Extra credit will be considered only for correct working
solutions to either Part 4 or Part 5. How much extra credit you
get is at your instructor's discretion. The amount will be
based on creativity, improvement of the game experience, and
difficulty or sophistication of implementation. Using a linked
list as part of your extra features will definitely improve your
chances of getting big points! Here's some extra information
that might be useful in adding extra credit features.
Adding Color
To add color to ncurses we need to start color support. This will require you to look into easycurses.h and make the proper addition in the right place.
-
Add
start_color(); when ncurses is first initialized.
start_color();
- Then we need to initialize colors we want. This doesn't
turn them on yet, but makes them easily available.
init_pair(1, COLOR_RED, COLOR_BLACK); // Red on Black
init_pair(2, COLOR_BLACK, COLOR_RED); // Black on Red
init_pair(3, COLOR_RED, COLOR_RED); // Red on Red (Red Block)
init_pair(4, COLOR_GREEN, COLOR_GREEN); // Green on Green (Green Block)
-
To actually use colors in plotting use
functions
attron(.) and attoff(.)
like this:
attron(COLOR_PAIR(1)); // Start using Red on Black
drawChar('X',10,15);
attroff(COLOR_PAIR(1)); // Stop using Red on Black
|
Using an extended character set
Full unicode in ncurses seems to be a bit messy. But it
does support a more modest extended character set pretty
nicely:
altcharset chart,
extended
charset chart.
The altcharset has predefined constants like
ACS_CHKBOARD . You write them to the screen
like this:
waddch(W, ACS_CKBOARD | A_ALTCHARSET);
For the extended charset there are simply numeric codes.
If you look at chart you'll see that the copyright symbol
has code 169, so you'd write it like this:
waddch(W, 169 | A_ALTCHARSET);
|
Deadline
- Part 1
- You must meet all Part 1 requirements by 2359 on Tuesday, April 17.
- Penalty: 3A, where A is the number of days late for part 1 (1 minute late = 1 day late).
- The full project
- Due 2359 on Tuesday, May 1.
- Penalty: 4B - 1, where B is the number of days late for the full project (1 minute late = 1 day late).
Therefore, your total score will be
Your original score - (3A + 4B - 1).
What to submit
Your electronic submission must include:
- Coversheet coversheet.pdf. Fill out and attach this
coversheet when you submit your work.
-
All .cpp and .h files required to compile and run your
program.
-
Your boardYYXXXX.txt file, your gameScript.txt file, and all board files
(e.g. boardCenter.txt) it references, including those that
are linked off this page
-
A file named
README
whose first line is the
proper g++ command to compile your project
— the basic project, that is, the furthest Part you
successfully completed without any extra credit.
We will use
this to compile your code, so it better be right!
The following lines should include your name and alpha,
and a description of your game (especially any extra credit
goodies that you've added on).
If you did any extra credit, the last line should be
the proper g++ command to compile your extra credit
assignment.
How to submit
The paper portions of your submission should be stapled together
and slid under your prof's door. For electronic submission,
continue to use the same method from the previous projects.
Within the directory in which you have been
saving your project, type:
~/bin/submit -c=SI204 -p=proj03 files-to-include
Where files-to-include is a list of all
.cpp and .h files specific to this project, as well as
your gameScript.txt file, README file, the boardYYXXXX.txt
file you
created, and all board-files required to run your project.
Submitting more than you need to submit is always
OK. Just be sure
that all the files needed to compile and run your project
(including the extra credit version of your project) are
there. So, assuming you have a directory for this project and
that you are in that directory, you could submit like this:
~/bin/submit -c=SI204 -p=proj03 README *.cpp *.h *.txt
Remember to include the g++ lines used to compile your program
as the first line in the README file, and if you did any extra
credit the g++ line used to compile the extra credit should be
the last line of the README file. You may submit files at any
time, but only the last submission will be used for grading.
How projects are graded / how to maximize your points
Things to keep in mind to receive full marks:
- Submit all required items (as described above) on time.
-
Make sure the form of your output matches the form of the
example output in all
ways.
-
Make sure you follow
the SI204
Style Guide.
This means proper indentation, use of whitespace within
lines of code, logical organization of chunks of code,
-
Make sure you do a good job of putting things in functions,
packaging data into structs, and breaking the program into
.h and .cpp files.
Most important: Look at the the grading sheet.
