SI204 Drawing with Excel

You can use Excel to plot points for you. The folowing will show you how to take the output of a simple program and cut-and-paste it into Excel, and then plot the points defined in the output using Excel's charting features. The general format is to list points, one per line, with the x-coordinate followed by a tab followed by the y-coordinate. Points on consecutive lines are connected by segments. If a blank line comes between consecutive points, they will not be connected by a segment.

The following program produces output which we can cut and paste into Excel to produce a plot of a triangle and it's "bounding box":

#include <iostream>
using namespace std;

int main()
{
  // triangle coordinates
  cout << 5.5 << '\t' << 2.7 << endl
       << 3.2 << '\t' << 6.5 << endl
       << 4.0 << '\t' << 8.1 << endl
       << 5.5 << '\t' << 2.7 << endl;

  // separate triangle from box
  cout << endl;

  // box coordinates
  cout << 3.2 << '\t' << 2.7 << endl
       << 5.5 << '\t' << 2.7 << endl
       << 5.5 << '\t' << 8.1 << endl
       << 3.2 << '\t' << 8.1 << endl
       << 3.2 << '\t' << 2.7 << endl;

  return 0;
}
If you compile and run this program, it'll print out:
5.5     2.7
3.2     6.5
4       8.1
5.5     2.7

3.2     2.7
5.5     2.7
5.5     8.1
3.2     8.1
3.2     2.7
Highlight this text in the window, right click and choose Edit and Copy to copy the text. We'll want to use this information in Excel.

Start Excel and open a new workbook. We'll paste our data into Excel and use it to plot the figures outlined by the above points.

  1. To paste, right-click on the top left cell and choose Paste Special. Choose to paste this in as text.

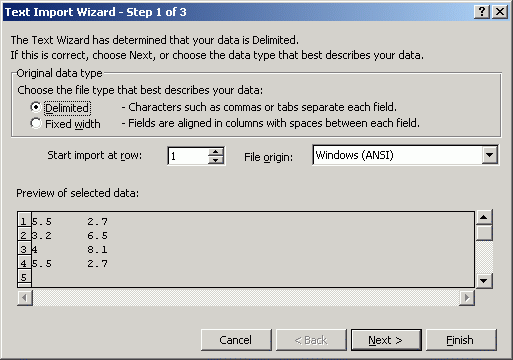

  2. Because we got one column of data instead of two, click on the little clipboard icon that's hanging out below the text you just pasted in and choose the Use Text Import Wizard... option.
  3. Click on Finish

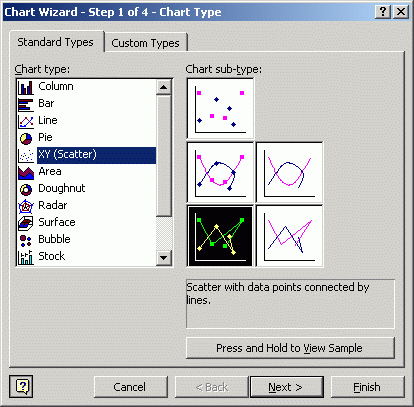

  4. Make sure all your data is highlighted, and click on the Chart icon on the Excel toolbar. Choose XY (Scatter) as the Chart type, and click on the Chart sub-type that connects points with lines. Click Finish.
  5. When all's said and done, you should get a picture like this:
