IC210: Functions I

Reading

Sections 4.1-4.3 and 5.1 of "Problem Solving with C++".

Motivating Example

Sometimes there is a particular chunk of code that appears over and over again in a program. For example, if we're writing a program to compute gcd's, we'd ask the user twice to enter in a positive number. This program illustrates how we'd have to do it. Now, there are plenty of nice functions in standard libraries, like sqrt and cos that do all sorts of nice things for us. If only there were a function getposint that would get a positive int from the user and return it to our program, we could rewrite our program as:

int main()
{
  int a = getposint(), b = getposint();

  // Compute gcd
  while(b != 0)
  {
    int r = a % b;
    a = b;
    b = r;
  }

  // Write out gcd
  cout << "The gcd is " << a << endl;

  return 0;
}

This is a tremendous improvement! Unfortunately, such a function is not a part of any of the standard libraries. Therefore, it's up to us to make it!

Prototypes

You should have noticed when looking at documentation for the cmath library that they give a description of the function like:

double cos(double x);

This is called a prototype. It tells you (and it tells the compiler) that cos takes an object of type double (that's the x) and returns or evaluates to an object of type double. It doesn't tell you how or what it's doing, but it does tell you that something like

cos("Brown")

is not going to make sense, since "Brown" has type string, not type double. Similarly, something like

if (cos(3*z) && k < 0)

You need to understand prototypes to understand how expressions that involve function calls are evaluated. For example:

cos(45)/2

What happens here? Either we'll do int division and the answer will be zero, or we'll do double division and we'll get some answer in the range [-0.5,0.5]. So which is it? Well, evaluating cos(45) results in a double, so as in any operation in which int's and double's are mixed, the int is promoted to a double and we get double division and a double result.

isn't going to make sense, since the && operator expects an object of type bool and the cos(3*z) evaluates to an object of type double. When you define functions of your own, you need to define a prototype as well. It must be defined outside of the main block, and it must appear before you ever use the function. Now, in the getposint function we'd envisioned earlier, there's nothing that the function takes as input from the program, and it should evaluate to or return the positive integer it's read in from the user, so the right prototype would be:

int getposint();

Function Definitions

In addition to giving the function prototype, you have to provide a function definition, which is what tells the computer what the function is supposed to do. The function's definition can appear anywhere after the prototype. You repeat the prototype (without the ';') and then give a block of code that comprises the function. Just as the return statement in main leaves the program, a return statement in your function body leaves the function. Instead of returning 0 however, we'll return whatever value the function's supposed to give. So our getposint function will have the following definition:

int getposint()
{
  int k;
  cout << "Enter a positive integer: ";
  cin >> k;
  while(k <= 0)
  {
    cout << "I said *positive*, try again: ";
    cin >> k;
  }

  return k;
}

The function definition also has to appear outside of the main block. This program gives a complete picture of how to rewrite our GCD calculator to make use of a getposint function.

Scope and Functions

There's some room for confusion with functions when the same name pops up in different places. For example, consider this program:

int f();

int main()
{
  int a, b;
  a = 0;
  b = f();
  cout << "a = " << a << endl;

  return 0;
}

int f()
{
  int a = 2;
  return -1;
}

What gets printed out? On the one hand, I'd say "0", since a just got assigned that value. On the other hand, the function f is called in between, and there I see a being given the value 2. So which is it? The answer is that "0" gets printed out. It all goes back to scope. The a in main does not exist outside of main, and likewise the a in the function f does not exist outside of f. These variables are two different objects that happen to have the same name. Since they are in different scopes, however, there is no confusion or conflict. We say that variables like this are local to the functions in which they are defined, i.e. they don't exist outside of the functions in which they are defined.

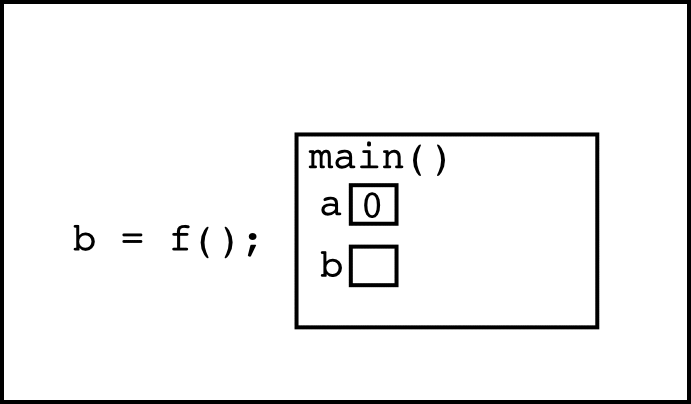

The way that you want to think of this is that each function call is like a piece of paper with boxes for each of the function's local variable. When a function is called a new piece of paper is stacked on the others. The computer only actually works on the function call represented by the top paper on the stack. This image helps you think about how variable scope works with function calls. In the case of calling the function f() in evaluating b = f(), you should be thinking of this ...

Functions with an argument

More interesting are functions which take an argument, i.e. some kind of input object. For example, we may often be in the situation of having to compute something like the factorial of a number. Especially if this crops up more than once in a program, it'd be really nice to have a function like the pow or sqrt functions from cmath to do the factorial for us. First, we need a prototype that specifies that our function (we'll call it factorial) takes an integer value and returns an integer value:

int factorial(int);

From this point on in our program we can use the factorial function. However, somewhere along the way we'll actually have to define the function --- something like this:

int factorial(int x)
{
  int f = 1;
  while (x > 0)
  {
    f = f*x;
    x--;
  }
  return f;
}

Notice that here we give a name to the int value that gets passed into the function, so that we can reference it within the body of the function definition. Values that get passed in to a function in C++ are called function arguments. It's important to note that the arguments are passed by value, meaning that you get a copy of the value of the variable function is called with, not the variable itself. So, for example, if our main function looked like

main()
{
  int y = 4;
  cout << factorial(y) << endl;
  cout << y << endl;

  return 0;
}

The result would be 24 followed by 4. Although the argument x in the function definition does get modified, the variable y does not, because y's value (i.e. 4) got passed to factorial, not the variable y itself. So pass by value means that a copy of the object appearing in the function call is what gets passed along to the function, not the object itself.

Remember also that scoping rules show us that any variable named x or f in main have no relation to the x and f in the factorial function. To reiterate, pass-by-value means that you get a copy of the argument. By analogy, calling the "haircut function" with argument "MIDN Jones" would 1) cause a clone to be made of MIDN Jones, 2) cause the clone's hair to get cut, and 3) cause the clone to get destroyed after the haircut. Thus, when MIDN Jones showed up in class the next day, his hair would still be shaggy.

Functions that return nothing

Sometimes we're interested in functions that return nothing at all. These functions are called for their side effects. This is an issue for our prototype, however, since we need to specify something for return type. In this case, we use void in place of a return type. Here's a stupid example:

void printgreetings();

int main()
{
  printgreetings();

  return 0;
}

void printgreetings()
{
  cout << "G R E E T I N G S !" << endl << endl;
  cout << "I am Dr. Brown, and this is my little demo" << endl
       << "program.  I hope you enjoy it.  If there" << end;
       << "are questions please hesitate to ask." << endl;
}

This function is only used for the side effect of writing something on the screen, not for any value it would return.

Vocabulary

function prototype - The prototype tells us what we need to know to use the function ... everything except what the function actually does! If you are presented with only a prototype there is usually some documentation that describes what task the function accomplishes.
function definition - This is where we provide the code that determines how the function operates, i.e. how it does whatever it does.
argument to a function - when we use a function ("call" a function) and we provide an expression whose value will be passed into the function, that expression is called an argument to the function.
function parameter - a function gives a name (and a type) for the value that is going to be passed into the function. That name is called a parameter. It's what is used inside the function definition to refer to the value that was passed into the function when the function was called.
pass a value to a function - this is often how we refer to the argument that a function receives when it is called.
pass-by-value - see above. Describes the basic function calling mechanism for C++, in which the function receives a copy of whatever argument object appears where the function is called, not the actual argument object itself.
function call - also called application - the point in the execution of a program at which the function expression is evaluated and, as a result, the function body executed.
function call site - the location in the source code of the expression that uses the function.
Note: Often we say "function call" when we mean "call site". It just requires some context. When we are talking about a location or a specific expression in the source code, we mean "call site". When we are talking about something that happens while the program is executing, we mean "call".
function's return value - also called result - the object that results from evaluating the function call expression.
