Name: ____________________________________________________ Alpha: _____________________

Describe help received: _________________________________________________________________

1. [20pts] Assume the following delcarations and fill in the table with either the type of the given expression, or "error" if appropriate.


   struct Point
   {
     double x, y;
   };

   struct Node
   {
     Point data;
     Node* next;
   };

   Node *L;
   double a, *ptr;
   Point p;


   expression	type
   *L
   L = &p
   &(L->data)
   L.next
   p->x
   *ptr = L->data.x
   *(L->next)
   &a
   L->next->data.y
   new Node
2. [15pts] Given the struct definition

   struct Node
   {
     int data;
     Node* next;
   };

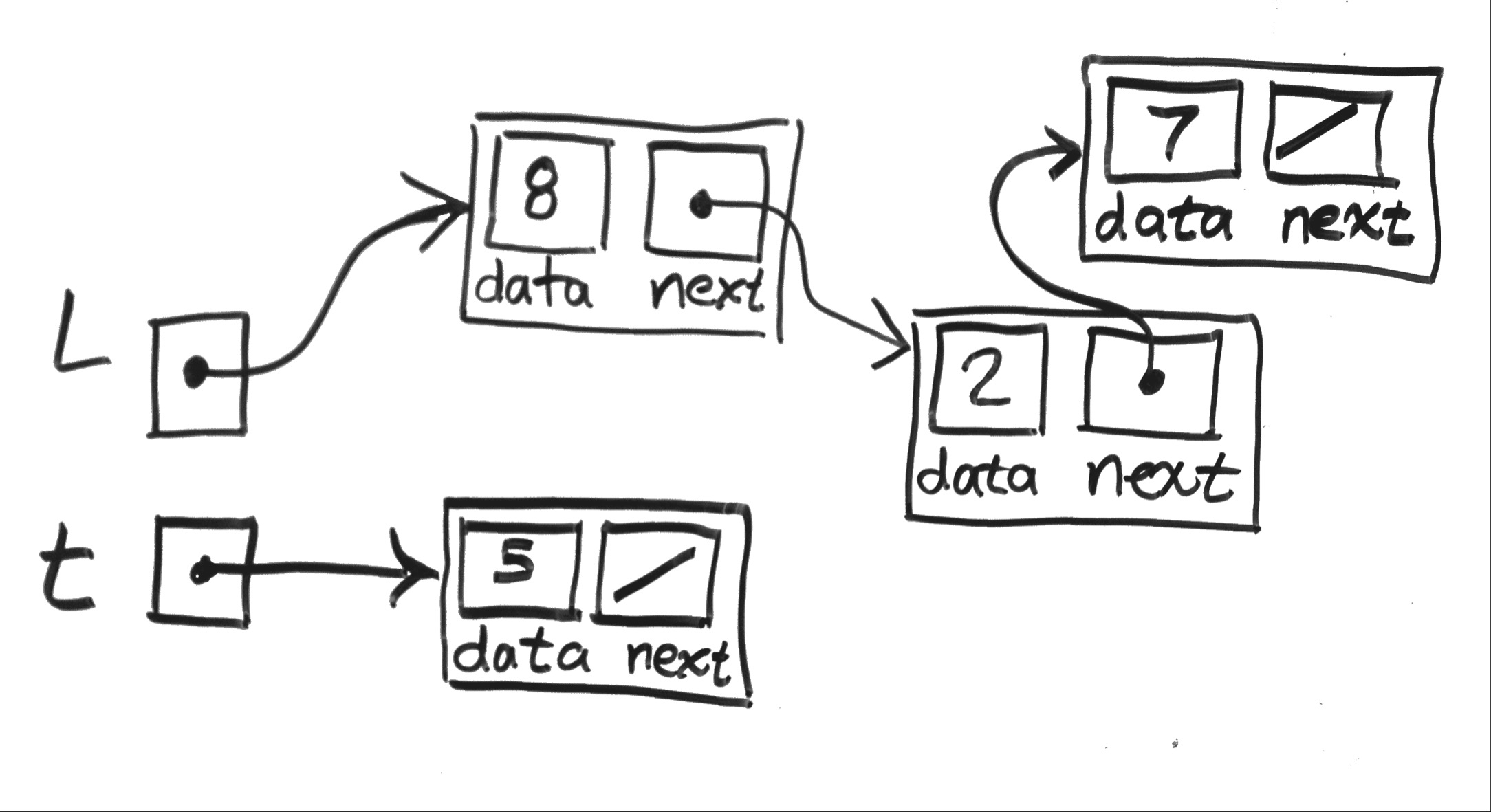

   and variables L and t, both of type Node*, with the values depicted in the figure to the right, write statement(s) that perform the following. Note: each problem is independent, meaning that changes in one part are not carried forward into the next part.
   1. Change the 8 to a 13:
   2. Change the 2 to a 6:
   3. Add the node t points to to the front of the list L — i.e. after these statements, L should point to the list 5,8,2,7.
3. [65pts] Take this program and break it up into a .h file and its associated .cpp file along with the .cpp file for main. The running program should work like this:

   ~/$ ./prog
   Enter a list of positive numbers, terminated by zero:
   7 2 9 33 14 10 9 18 7 0
   The last number was 7
   The next to last number was 18


   Turn In a printout of all three source code files (codeprint allows you to list several files to print all together, like codeprint foo.h foo.cpp bar.cpp), and a screenshot of a terminal window showing the program being compiled and running on the above example.
